Multi Functional Total Station High Precision Measurement Geophysical Survey Equipment

Name: Multi Functional Total Station High Precision Measurement Geophysical Survey Equipment
Brand: CETU
Price: 800 USD

China Multi Functional Total Station High Precision Measurement Geophysical Survey Equipment wholesale

Model Number : Dtm-152m

Model NO. : DADI DTM-152M

Range Finding : 3-15km

Accuracy : 2mm

Vertical Lines : 1

Horizontal Line : 1

After-Sales Service : Professional Guidance

Warranty : 1 Year

Minimal Display : 1mm

Grating Diameter : 79mm

Precision : 2″

Magnification : 30X

Minimun Reading : 1″

Transport Package : Carton

Trademark : DADI

Origin : Changzhou, China

HS Code : 9015800090

Production Capacity : 10000

Package Size : 50.00cm * 30.00cm * 40.00cm

Package Gross Weight : 9.000kg

Place of Origin : China

Brand Name : CETU

Certification : CE

MOQ : 1

Packaging Details : Carton

Delivery Time : 10-30days

Payment Terms : T/T advance; Western union; MoneyGram,etc.

Supply Ability : 1000

Price : $800-30000

Contact Now

Multi-Functional Dtm-152m Total Station High Precision for Geophysical Surveys and Horizontal/Vertical Line Measurements

Multi Functional Total Station High Precision Measurement Geophysical Survey Equipment

1. Laser Non-Prism Ranging

2. Absolute coded goniometer

3. Dual axis electronic compensation

4. Simple and convenient operation

5. Large LCD display

6. Extensive measurement program

7. Mass data storage

Distance measurement
Range	Single prism	1800m visibility:23.5km
	Triple prism	3200m visibility:23.5km
Precision	±(2mm+2ppm·D),±(3mm+2ppm·D)
Unit	m/ft
Minimal display	1mm
Measuring time	Precision measurement delay 2 seconds, tracking 0.5 seconds
Angle measurement
Angel measuring method
Grating diameter	79mm
Minimun Reading	1″
Detection method	Vertical	Antipodal
	Horizon	Single	Antipodal
Precision	2″
Telescope
Image	Erect
Lens barrel length	172mm
Objective lens effective aperture	48mm
Magnification	30X
Field of view	1.5°
Resolution	3.75″
Minimum focus distance	1m
Tilt compensator
System	Single-axis liquid compensator
Working range	±3′
Resolution	1″
Display
Type	Double-sided, 240X160 graphic dot matrix LCD display
Data transmission
Interface	USB,RS-232C
Storage capacity	More than 16,000 points
Others
Plummer	Optical/Laser plummet
Battery	Rechargeable lithium battery, DC7.2V, 3000mAh
Continuous working time	More than 10 hours
Weight	6kg
Working temperature	-20ºC~50ºC

Product Tags:

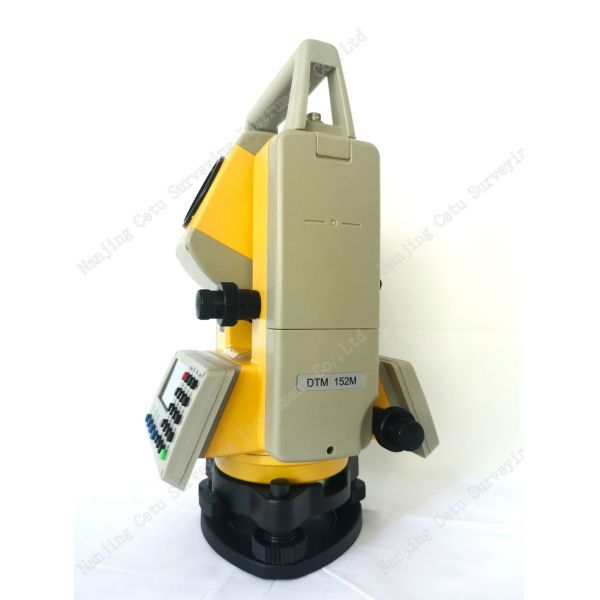

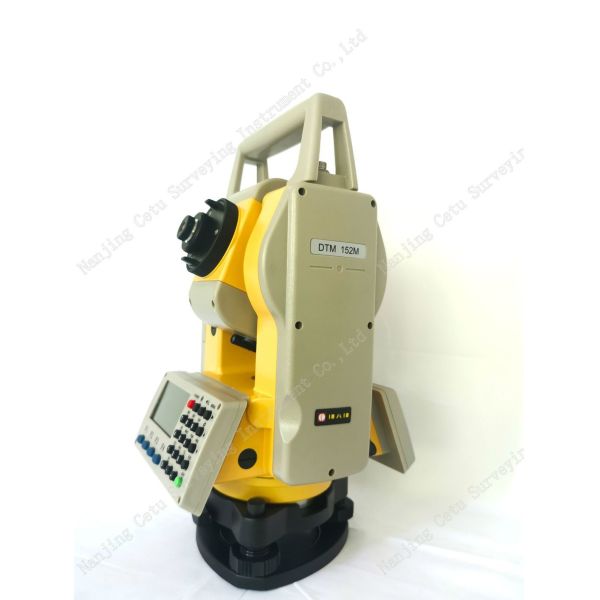

Multi Functional Total Station High Precision Measurement Geophysical Survey Equipment Images
