Product Description
The Best-in-Class GNSS Engine
The integrated advanced 1598-channel GNSS technology helps K7 to collect signal from GPS, Glonass, Beidou, Galileo, QZSS, in particular the latest BeiDou III. It greatly improved the data quality and satellite signal capturing speed of GNSS surveying.
New Radio, Farlink Tech.
Farlink technology is developed to send large number of data and avoid data loss.
This new protocol improves the signal-catching sensitivity from -110db to -117db, so K7 can transmit to 10 km away by only 1 watt power consumption.
kFill, Save RTK Correction Signal Loss
Kolida's kFill technology is able to provide a 5-minutes sustainable high accuracy service during a temporary RTK or VRS signal coverage outtages. After the correction data signal recovers, receiver will switch to real time correction data connnection seamlessly.

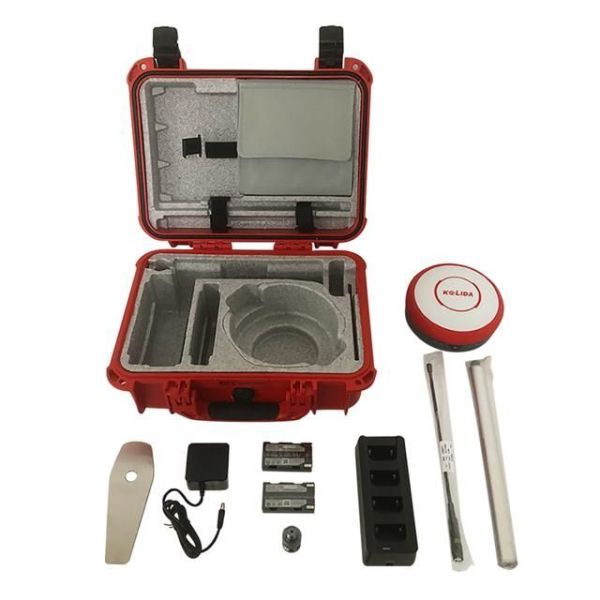

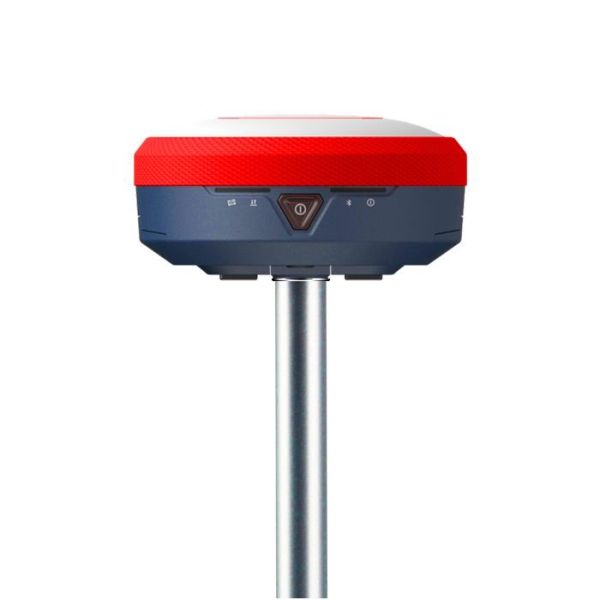

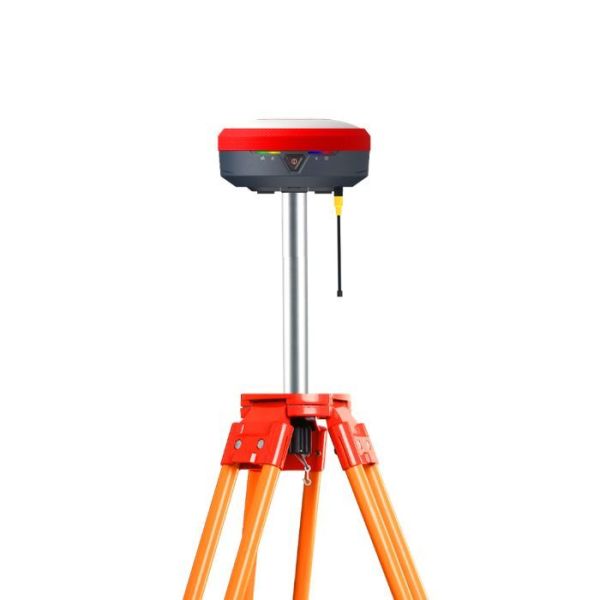

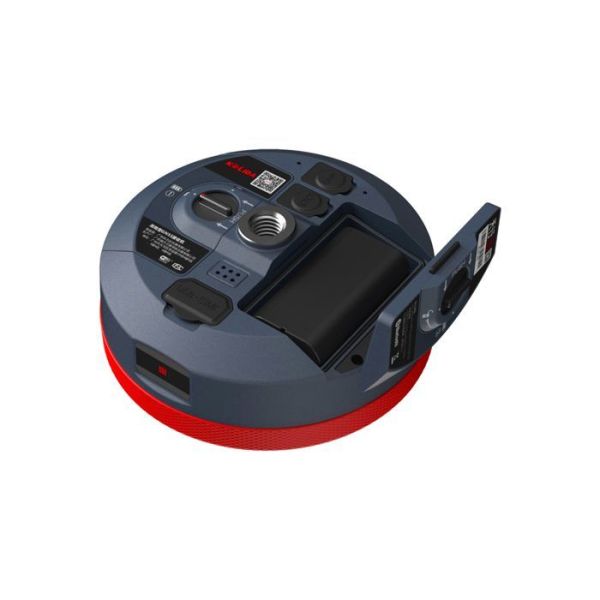

Detailed Photos
Product Parameters
| Receiver Characteristic | Satellite System | GPS+BDS+Glonass+Galileo+QZSS,
support Beidou 3rd generations,
support five-star twenty-one frequency |
| Channels | 624 |
| Operatin system | Linux system |
| Initialization time | <5s |
| Initialize reliability | >99.99% |
| Receiver appearance | Buttons | 1 dynamic/static switch key, 1 power key |
| Indicator light | 1 differential signal light, 1 satellite light,
1 static data acquisition light, 1 power light |
| Nominal Precision | RTK precision | Horizontal accuracy:±(8 + 1.0*10-6*D) mm |
| Vertical accuracy:±(15 + 1.0*10-6*D) mm |
| Static precision | Horizontal accuracy: ±(2.5+ 0.5*10-6*D) mm |
| Vertical accuracy: ±( 5 + 0.5*10-6*D) mm |
| Code differential precision | Horizontal accuracy: ±(0.25+ 1*10-6*D) mm |
| Vertical accuracy: ±( 0.5 + 1*10-6*D) mm |
| Electrification parameters | Battery | Built-in 6800mAh lithium battery |
| External power supply | Support external power supply via USB port |
| Physical characteristics | Size | 119 mm*119 mm * 85mm |
| Weight | 0.73Kg |
| Material | Magnesium alloy AZ91D |
| Working temperature | -45ºC~+75ºC |
| Storage temperature | -55ºC~+85ºC |
| Waterproof and dustproof | IP68 |
| Anti-collision | IK08 |
| Anti-drop | Resist 2 meters free fall |
| Data output | Output format | NMEA 0183, binary code |
| Output method | BT/Wi-Fi/Radio |
| Static storage | Storage format | Can directly record HCN, HRC, RINEX |
| storage Space | Standard 8GB built-in storage |
| Download method | Universal USB data download; HTTP downloadv |
| Data communication | I / O interface | 1 external UHF antenna port |
1 USB-TypeC interface,
support charging, power supply, data download |
| Network module | Supports 4G full Netcom |
| Radio | Built-in high frequency 450-470MHz single receiver radio |
| Bluetooth | BT4.0, backward compatible with BT2.x,
compatible with Windows, Android, IOS systems |
| Protocol | Transparent transmission, TT450 |
| Wi-Fi | 802.11 b/g/n |
| NFC | Support NFC flash connection |
| Receiver function | One-click match | Support hand-controller software to match base station data with one key |
| Remote upgrade | Software and hardware remote upgrade |
| Hand-controller parameters | Type | HCE600 |
| Network | 4G full Netcom, built-in eSIM for three years of surveying and mapping traffic |
| Operating system | Android 10 |
| CPU | Octa-core 2.0Ghz processor |
| LCD screen | 5.5'' HD display |
| Working time | About 14 hours |
